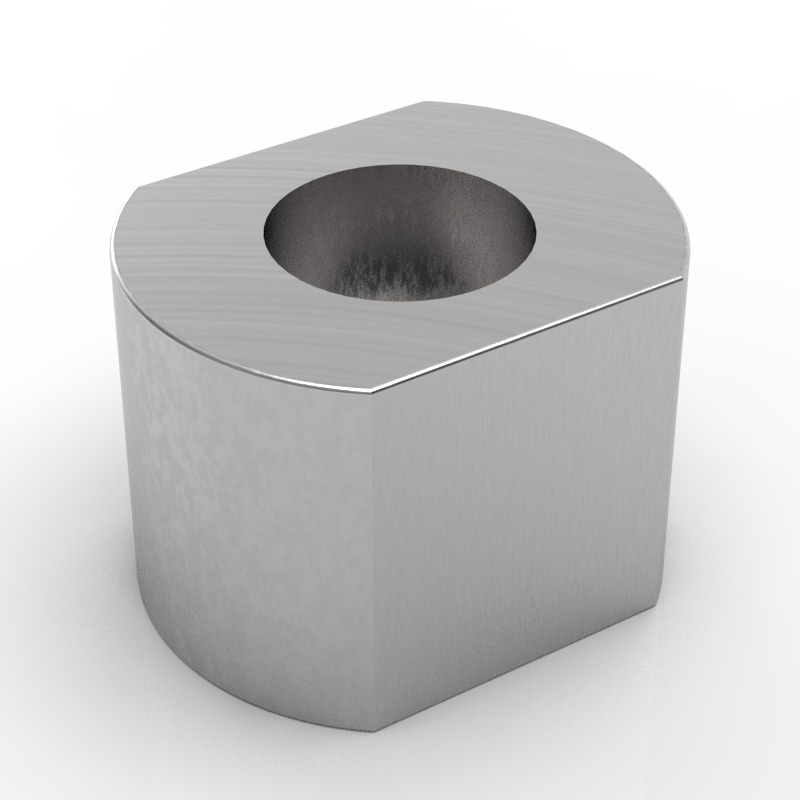

LNG40 Cast Alnico Permanent Magnet – (54025)

Discover our high-performance LNG40 Alnico permanent magnet (Part No. 54025). This precision-engineered ring magnet measures 22.23mm in outer diameter, 5.56mm in inner diameter, and 15.88mm in height. It’s ideal for high-temperature industrial applications, offering excellent stability and corrosion resistance.

Category: Alnico Magnet

Description
Reviews (0)

Description

This high-quality ring magnet is engineered from LNG40, a powerful and durable grade of cast Alnico. Designed for demanding industrial applications, this magnet provides exceptional magnetic performance, high-temperature stability, and strong resistance to corrosion.

Key Specifications:

Part Number: 54025
Material Grade: LNG40 Cast Alnico
Shape: Ring with a counterbore
Dimensions:
- Outer Diameter: 22.23 mm (±0.1 mm)
- Inner Diameter (Through-hole): 5.56 mm (±0.2 mm)
- Counterbore Diameter: 10.5 mm (±0.2 mm)
- Overall Height: 15.88 mm (±0.1 mm)
Finish: To ensure precision and a smooth surface, all faces are ground except for the center hole.
Magnetization: Supplied fully magnetized and ready for immediate integration into your assembly.
